ProAir 2200
ProAir 2200 is a compact, easy to install and operate compressed airline monitor that can continuously and simultaneously monitor up to four gases in real-time using internally mounted sensors. ProAir 2200 can be custom configured to monitor a variety of hazardous gases present in compressed air, including carbon monoxide, oxygen, dew point, carbon dioxide, VOCs, trace hydrocarbons and many other gases associated with OSHA monitoring requirements for Grade D breathing air.
ProAir 2200 is ENMET’s most advanced compressed airline monitor for process or breathing air requirements. It is used in a wide variety of industrial applications from aerospace to pharmaceutical and can be easily adapted to meet your specific needs for compressed airline monitoring.
Standard Features
- Continuous real-time gas monitoring of compressed airlines
- Can be custom configured with up to 4 sensors
- Able to withstand harsh process environments
- User programmable alarms and relays
- Meets Grade D breathing and NFPA 99 requirements
- Low flow alarm
- Field replaceable sensors
Gasses that can be monitored:
- Acetone (CH3)2CO
- Acetonitrile (CH3CN)
- Acetaldehyde (CH3CHO)
- Ammonia (NH3)
- Benzene (C6H6)
- Butane (C4H10)
- 2-Butanone (MEK) (C4H80)
- Bromine (Br2)
- Carbon dioxide (CO2)
- Carbon monoxide (CO)
- Chlorine (Cl2)
- Chlorine dioxide (CLO2)
- Combustible Gas
- Dew Point (DP)
- Ethanol (CH3CH2OH)
- Ethyl alcohol (C2H5OH)
- Ethylene (C2H4)
- Ethylene oxide (ETO) (C2H4O)
- Fluorine (F2)
- Gasoline
- Heptane (C7H16)
- Hexane (C6H14)
- Hydrocarbons
- Hydrogen (H2)
- Hydrogen cyanide (HCN)
- Hydrogen sulfide (H2S)
- Jet Fuel (JP8)
- Isobutane (C4H10)
- Isobutylene (C4H8)
- Isopropanol (CH3) CHOH
- Isopropyl alcohol (IPA) (C3H8O)
- Kerosene
- Methane (CH4)
- Methanol (CH3OH)
- Methyl alcohol (CH3OH)
- Methyl chloride (CH3Cl)
- Methyl ethyl ketone (MEK) (C4H8O)
- Methylene chloride (CH2Cl2)
- Natural Gas
- Nitric oxide (NO)
- Nitrogen dioxide (NO2)
- Nitrous oxide (N2O)
- Organic solvents
- Oxygen (O2)
- Pentane (C5H12)
- Propane (C3H8)
- Propylene (C3H6)
- Propylene oxide (C3H6O)
- Solvents
- Styrene (C8H8)
- Sulfur dioxide (SO2)
- Toluene (C7H8)
- Trichloroethylene (C2HCl3)
- Vinyl chloride aka Chloroethene(VCM) (C2H3Cl)
- Volatile Organic Compounds (VOCs)
- Water/Dew Point
- Xylene (C8H10)
Video
Product Documents
Related products

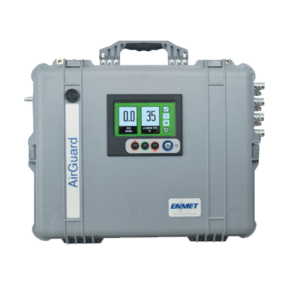

AirGuard
