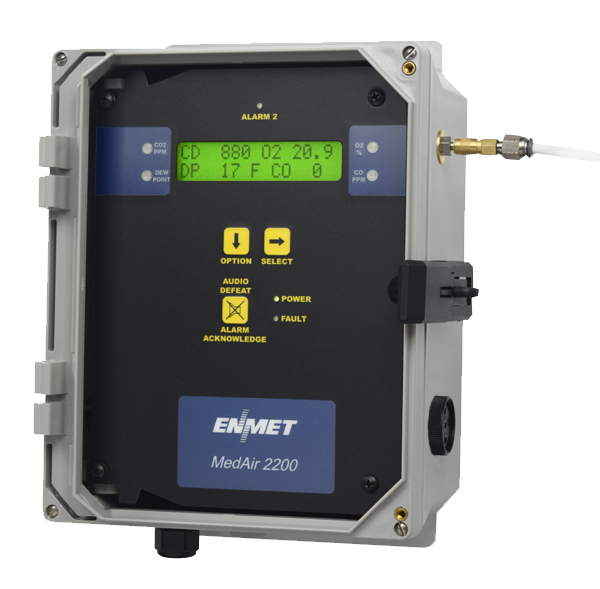

MedAir 2200

• Continuous real-time gas monitoring of hospital compressed airlines
• Monitors oxygen, carbon monoxide and dew point simultaneously
• User programmable alarms and relays
• Meets Grade D breathing and NFPA 99 requirements
• Low flow alarm
• Field replaceable sensors

Display: High-contrast, backlit

Alarms: Visual: LEDs

Audible: Piezoelectric horn, 95 dB at 2 feet

Alarm Relays: 5 programmable gas relays plus fault.  All relays are programmable latching or nonlatching, dry SPDT, 10 amps (resistive load only) at 110 VAC

Operating Power: 100 to 240 VAC and/or 12 VDC, 15 Watts

Sensor Types:    CO and O2: Electrochemical

Dew Point: Thin-Film Polymer

Sensor Life: CO: 1-3 years, with calibration

O2: 1-2 years, with calibration

Dew Point: 2 years, replacement

Response Times:

Dew point: T90 = 10 seconds for -40° to 50°F step change

CO: T90 = 30 seconds

O2: T90 = 15 seconds

Flow Rate: 1/2 liter per minute (1 SCFH)

Enclosure: Thermoplastic box with clear, hinged front cover, designed for NEMA 12 and 4X

Dimensions: 9.3 W x 11.9 H x 6.1 D inches (21.3 W x 30.3 H x 15.4 D cm)

Weight: 8 lbs. (3.6 kg)

Approvals: UL 60601-1, IEC 60601-1 & CSA 22.2, No. 601.1

STANDARD CALIBRATIONS

Range:

0-50 ppm CO

0-30% O2 Deficiency

0-30% O2 Abundance

-112° to +68°F Dew Point
(-80° to +20°C)

Alarm Points:

10 and 20 ppm CO

19.5% O2 Deficiency

23.5% O2 Abundance

Alarm 1: +35°F Dew Point (+1.6° C)

Alarm 2: +50°F Dew Point (+10° C)
